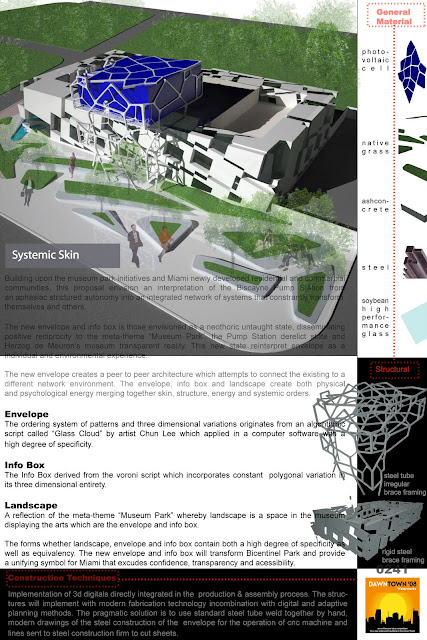

A board from a competition I entered

Competition

Competition

Terminal 1 Airport Project

Terminal 1 Airport Project
Platform floorplan for conveyor system

Terminal 1 Airport Project

Terminal 1 Airport Project
Elevated Room Floor plan and Ceiling Plan

Terminal 1 Airport Project

Terminal 1 Airport Project
Elevation of Control Room

Terminal 1 Airport Project

Terminal 1 Airport Project
Exterior Elevation of Control

Terminal 1 Airport Project

Terminal 1 Airport Project
Section of catwalk connection with Control Room

Price House

Price House

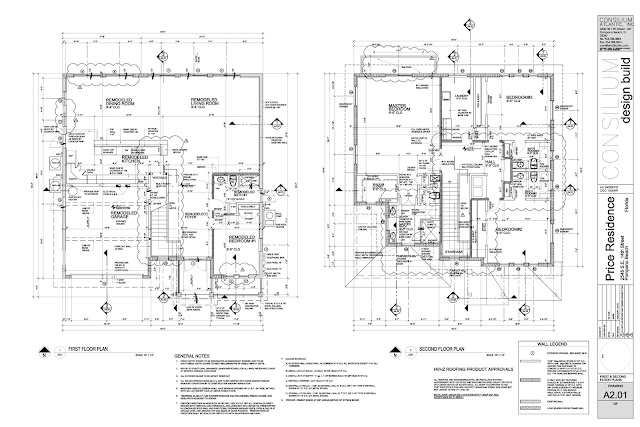

Floor plans

Price House

Price House
Roof Plan

Price House

Price House

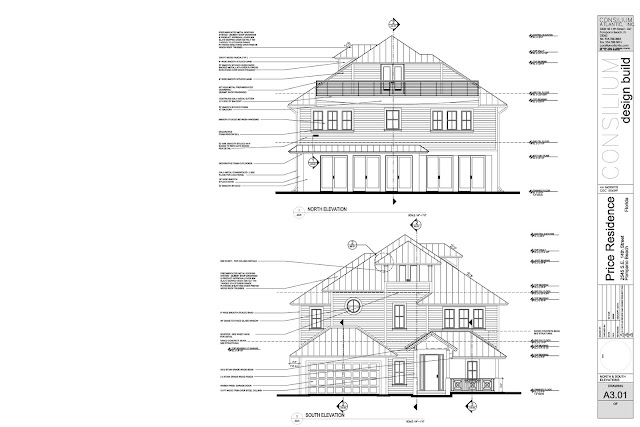

Elevation

D2NYC

Tuesday, May 5, 2009

METAL

METAL TERMINOLOGIES

* TIP OF THE DAY
- create categorize terminology
sheet pinned up into your room or
place of study or surfaces in the
your home that you can easily
take a glance with no strain
to ease the weight
terminologies and materials to
cover. Remember Categorize!

Sherardizing - is the process of placing steel into an enclosure in which it is surrounded with metallic zinc dust and then heated.

Castellated Beam - steel beam which can be altered for a longer span without increasing its weight. The web is flame cut in a zigzag pattern and then the two elements are welded back together in a way that creates a deeper section, thus increasing spanning potential.

Galvanization - corrosion resulting from the contact of dissimilar metals in the presence of an electrolyte, such as moisture. To prevent this, different metals should be separated from each other by a non conductive barrier such as rubber or neoprene.

Square - a measurment roofing materials are estimated, sold and installed by. One square is equal to 100 square feet.

Extrusion - is a process through which solid metals are shaped to a required form. A piston
pushes a heated billet of metal through a shaped die. The extrusion process can produce very intricate sections for a variety of applications.

Breakforming - is a process through which solid metals are shaped to a required form. It is a bending operation applied to plates or metal sheets in which successive, one dimensional bends produce the desired shape.

Light Gauge Framing - an aluminium framing system that is lightweight, fast to erect, decay-proof and dimensionally stable. The system is installed like a wood stud system and can span up to 32 feet high with light loads.

Reinforcing Steel - are steel used in concrete construction to compensate for the lack of tensile strength in concrete. Typically available in the form of either deformed bars or welded-wire fabric.

Built- up sections - are constructed from a combination of standard structural steel sections. They are used to solve specific structural problems.


-
processes of welding
Soldering - the joining of metal elements by mean of another metal that has a melting point much lower than that of the base metal.

Brazing - the joining of two or more pieces of metal at a temperature of 800F or above, using a non-ferrous filler metal with a melting point below that of the base metal. The filler metal is distributed between the surfaces of the joint by capillary action. Used for brass, bronze and some aluminium.


-method of heat treating steel
Annealing - heating the steel to a high temperature, 1350F to 1600F controlled cooling to soften the steel and change its ductility.

Quenching - rapid cooling from a high temperature by immersion in water or other liquid to increase hardness.

Tempering - Re-heating to less than 1350F after quenching and slowly cooling to restore ductility.

Casehardening - controlled cooling produces a hard, high carbon surface over a relatively softer steel core.
